Small Induction Casting Machines

Leading Manufacturers, Exporters, Wholesaler, Retailer and Trader of 1 Kg Induction Jewelry Casting Machine, 1 Kg Induction Melting Machine for Gold and Silver, 2 Kg Induction Jewelry Casting Machine, 2 Kg Induction Melting Machine for Gold and Silver, 3 Kg Induction Jewelry Casting Machine and 500gm Induction Melting Machine for Gold and Silver from Sangli.

Business Type Manufacturer, Exporter, Supplier, Importer
Usage Jewelry Casting,Gold Refining,Silver Melting
Warranty 1 Year Manufacturer Warranty
Melting Capacity 1 Kg (Gold, Silver, Imitation Alloys)
Power Source 1 KW Induction Coil
Power Supply 230V AC Single Phase
Temperature Range Up To 1200°C
Melting Time 30-75 Minutes
Cooling System Water-cooled (500 LPH Consumption)
Water Flow 5 LPM At 0.2 MPa Pressure
Operation Manual Feed With Digital Control Panel
Efficiency Zero Metal Loss, Energy-saving Furnace
Mixing Uniform Alloy Blending Via Induction Agitation
Compliance ISO And BIS Standards

Click to view more

We offer a high-quality 1 Kg Induction Jewelry Casting Machine designed for jewelry casting with a 1-year manufacturer warranty. This machine has a melting capacity of 1 Kg for gold, powered by a 1 KW induction coil and 230V AC single-phase power supply. It can reach temperatures up to 1200°C with a melting time of 30-75 minutes. The machine features a water-cooled cooling system with 500 LPH consumption and manual feed operation with a digital control panel. Ideal for manufacturers, exporters, and suppliers in the jewelry industry.

Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier, Importer
Efficiency Low Power Consumption, Reduced Metal Loss
Application Jewelry Melting, Gold Refining, Silver Casting
Melting Capacity 1 Kg (Gold, Silver)
Warranty 1 Year Manufacturer Warranty
Power Supply 230V AC Single Phase
Voltage 180V - 260V
Maximum Temperature 1200°C
Crucible Type Graphite Crucible With Auto-stirring
Model SPS-1KG
Developed Power 5 KW
Cooling System Air-cooled
Operation Manual Feed With Digital Control Panel
Design Compact, Flameless, Silent Operation
Compliance ISO And BIS Standards

Click to view more

We offer the SPS-1KG Induction Melting Machine designed for melting 1 Kg of gold and silver with precision. Operating at a voltage range of 180V - 260V, this machine is ideal for jewelry melting applications. With a power supply of 230V AC Single Phase and a developed power of 5 KW, it can reach a maximum temperature of 1200°C. Equipped with an air-cooled cooling system and a graphite crucible with auto-stirring feature, this machine ensures efficient and reliable performance. Backed by a 1-year manufacturer warranty, this machine is a must-have for manufacturers, exporters, and suppliers in the industry.
Read More...


Request to Call

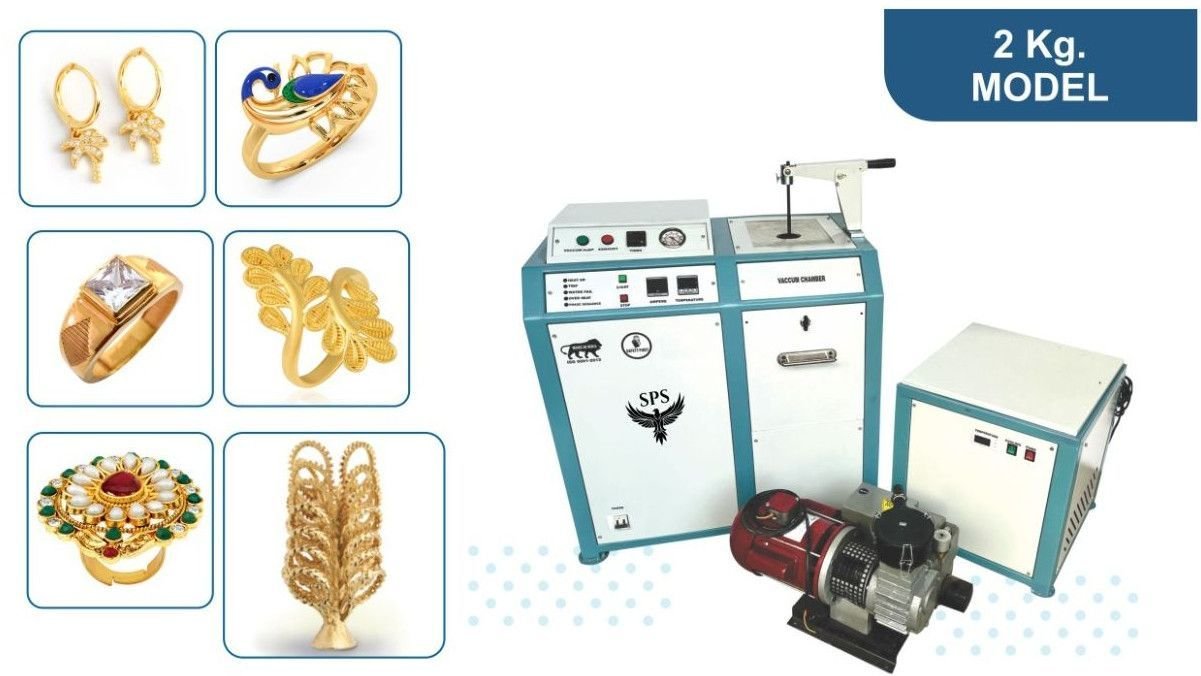

Business Type Manufacturer, Exporter, Supplier, Importer
Frequency 50 Hz
Usage Jewelry Casting, Gold Refining, Silver Melting, Imitation Jewelry Production
Warranty 1 Year Manufacturer Warranty
Melting Capacity 2 Kg (Gold, Silver, Imitation Alloys)
Power Supply 440V AC, 3 Phase
Power Rating 10 KW
Melting Time Approx. 30 Minutes
Cooling System Water-cooled With 600 LPH Chiller Capacity
Water Flow 5 LPM At 6°C
Operation Manual Feed With Digital Control Panel
Efficiency Zero Metal Loss, Energy-saving Flameless Furnace
Mixing Uniform Alloy Blending Via Induction Agitation
Design Compact, High-accuracy Casting Unit With Control Module
Compliance ISO And BIS Standards

Click to view more

We offer a high-quality 2 Kg Induction Jewelry Casting Machine designed for precision jewelry casting. Operating at a frequency of 50 Hz with a melting capacity of 2 Kg for gold, this machine is ideal for jewelry manufacturers. It comes with a 1-year manufacturer warranty, 440V AC power supply, and a power rating of 10 KW. The melting time is approximately 30 minutes, and it features a water-cooled system with a 600 LPH chiller capacity. With manual feed operation and a digital control panel, this machine is perfect for manufacturers, exporters, and suppliers in the jewelry industry.
Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier
Model SPS-2KG
Melting Capacity 2 Kg (Gold, Silver)
Power Supply 230V AC Single Phase
Power Rating 6 KW
Cooling System Water-cooled (2 LPM Flow)
Water Inlet Temperature 20°C
Cooling Water Temperature < 30°C
Maximum Temperature 1200°C
Crucible Type Graphite Crucible With Auto-stirring
Dimensions 400 Mm X 600 Mm X 800 Mm
Weight Approx. 65 Kg
Operation Manual Feed With Digital Control Panel
Efficiency Low Power Consumption, Reduced Metal Loss, Long Life
Application Jewelry Melting, Gold Refining, Silver Casting
Warranty 1 Year Manufacturer Warranty
Compliance ISO And BIS Standards

Click to view more

We offer the SPS-2KG Induction Melting Machine, designed for jewelry melting with a 2 Kg capacity for gold and silver. This 65 Kg machine operates on 230V AC Single Phase power, rated at 6 KW. It features a water-cooled system with 2 LPM flow, maintaining cooling water temperature below 30°C. Backed by a 1-year manufacturer warranty, this machine is ideal for manufacturers, exporters, and suppliers in the industry. Upgrade your melting process with our efficient and reliable 2 Kg Induction Melting Machine for precise and consistent results.
Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier, Importer
Usage Jewelry Casting,Gold Refining,Silver Melting,Imitation Jewelry Production
Warranty 1 Year Manufacturer Warranty
Model SPS-3KG
Melting Capacity 3 Kg (Gold, Silver, Imitation Alloys)
Power Supply 230V AC, Single Phase
Power Rating 3 KW
Melting Time Approx. 30 Minutes
Cooling System 2 Ton Chiller With 80 Liters Tower Capacity
Water Flow 600 LPH At 20°C
Operation Manual Feed With Digital Control Panel
Efficiency Zero Metal Loss, Energy-saving Flameless Furnace
Mixing Uniform Alloy Blending Via Induction Agitation
Design Compact Casting Unit With Control Module
Compliance ISO And BIS Standards

Click to view more

We are a leading Manufacturer, Exporter, and Supplier offering the SPS-3KG Induction Jewelry Casting Furnace with a 1-year Manufacturer Warranty. This powerful furnace has a melting capacity of 3 Kg for gold, operates on 230V AC with a power rating of 3 KW, and melts in approximately 30 minutes. Equipped with a 2 Ton Chiller and 80 liters tower capacity cooling system, it ensures efficient performance. The manual feed with a digital control panel makes operation easy. Ideal for jewelry casting applications, this furnace guarantees precise results. Upgrade your jewelry casting process with our reliable and high-quality SPS-3KG furnace.

Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier, Importer
Maximum Temperature Up To 1200°C (Single Phase)
Machine Type Table Top Induction Furnace
Installation Table Top, Compact Design
Melting Capacity 500 Grams (Gold & Silver)
Efficiency Low Power Consumption, Quick Melting, Reduced Metal Loss
Brand Name SPS Gold Refinery Systems
Operation Mode Plug & Play, User Friendly
Model Name SPS-LM500GMS
Melting Time 20-30 Minutes
Auto Stirring Enabled
Country of Origin India
Crucible Type Small Graphite Crucible
Power Rating 4 KW
Warranty 1 Year Manufacturer Warranty
Cooling Mode Air Cooling
Power Supply Single Phase Or 3 Phase (230V AC)
Application Jewelry Refining, Alloy Mixing, Small Batch Melting

Click to view more

We are SPS Gold Refinery Systems, a leading Manufacturer, Exporter, and Supplier of the SPS-LM500GMS Table Top Induction Gold & Silver Melting Machine. This powerful machine has a melting capacity of 500 grams for both gold and silver, with a power rating of 4 KW and a melting time of 20-30 minutes. It operates on single-phase or 3-phase power supply (230V AC) and can reach a maximum temperature of up to 1200°C. The machine features a small graphite crucible, air cooling system, and is ideal for melting precious metals efficiently. Upgrade your melting process with our reliable and high-quality induction furnace.
